- Solenoid Valve Control
- Autonomous Operation
- Flexible Power Supply Options
- Support Multicast for Control in Bulk
- IP67 Rated Enclosure for Harsh Environment
- Internal and External Antenna Versions Optional
- Data Integrity and Reliability
- Easy Configuration via NFC
- Milesight D2D
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN®, Milesight D2D |
| Antenna | Internal Antenna or External Antenna (Hardware Optional) External Antenna (EA) Version: 1 × 50 Ω SMA Female Connector |
| Frequency | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16dBm (868 MHz)/20dBm (915 MHz)/19dBm (470 MHz) |
| Sensitivity | -137dBm @300bps |
| Working Mode | OTAA/ABP Class A, Class B, Class C, Class C to B |
| Data Interfaces | |

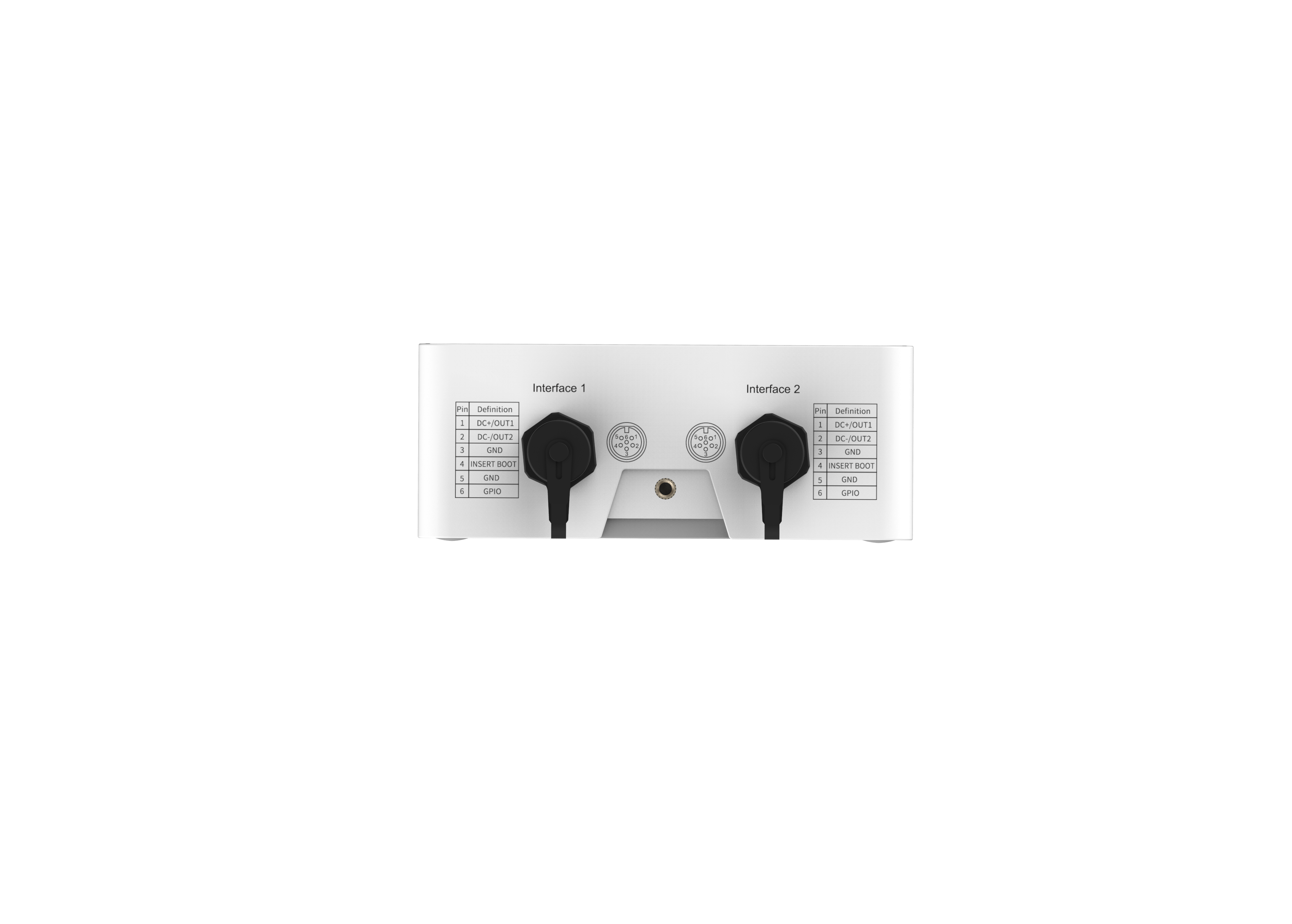

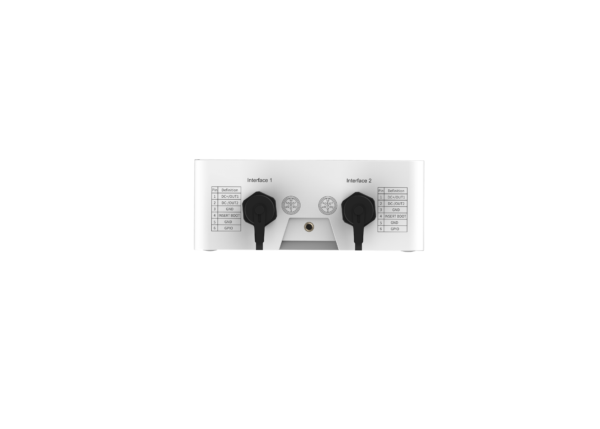

| Interface Type | M12 A-Coded Male |
| Solenoid Interface | |
| Ports | 2 × Solenoid Interfaces |
| Solenoid Support | 2 Wires DC 12V Latching Solenoids |
| Cable Length | 1.5m (by Default) |
| GPIO Interface | |
| Ports | 2 × GPIO Interfaces, Dry Contact |
| Work Mode | Digital Input, Pulse Counter |
| Operation | |
| Power On & Off | Mobile App (via NFC), PC Software (via USB Type-C), Power Button (Internal), Cable Connection |
| Configuration | Mobile App(via NFC) or PC Software (via USB Type-C) |
| Advanced Feature | Multicast, Data Storage, Data Retransmission, Milesight D2D Agent, Local Rules |
| Physical Characteristics | |

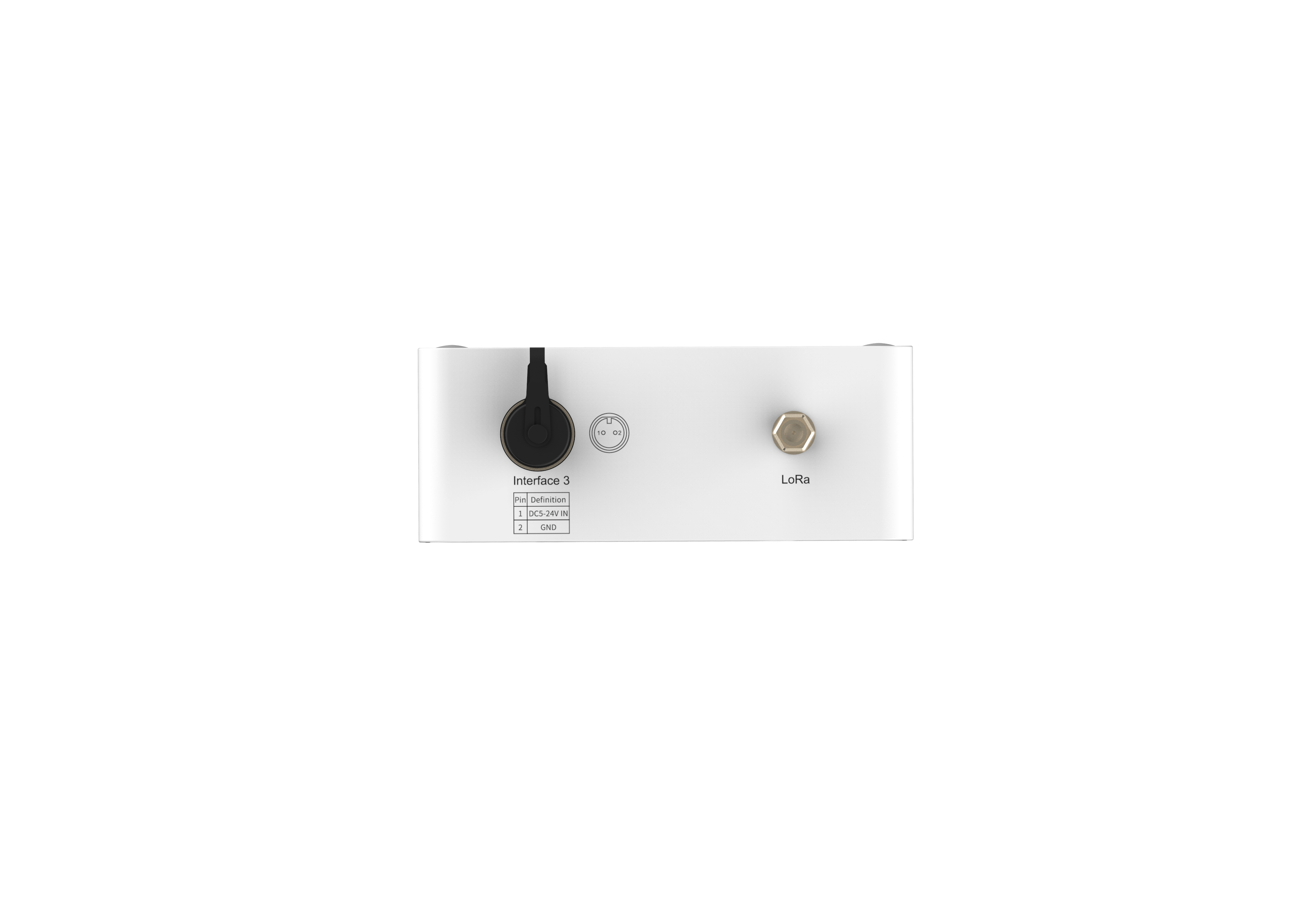

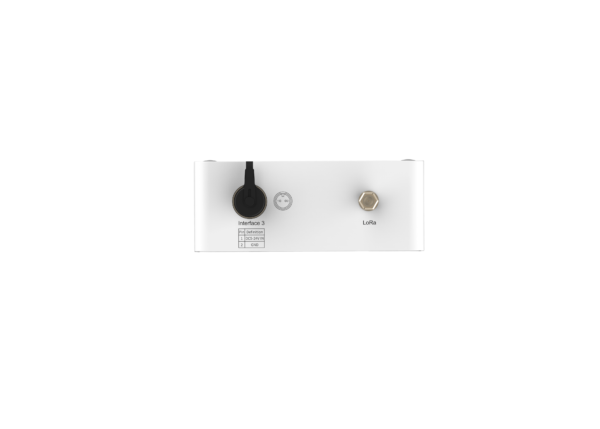

| Power Connector | M12 A-Coded Male (EA Version Only) |

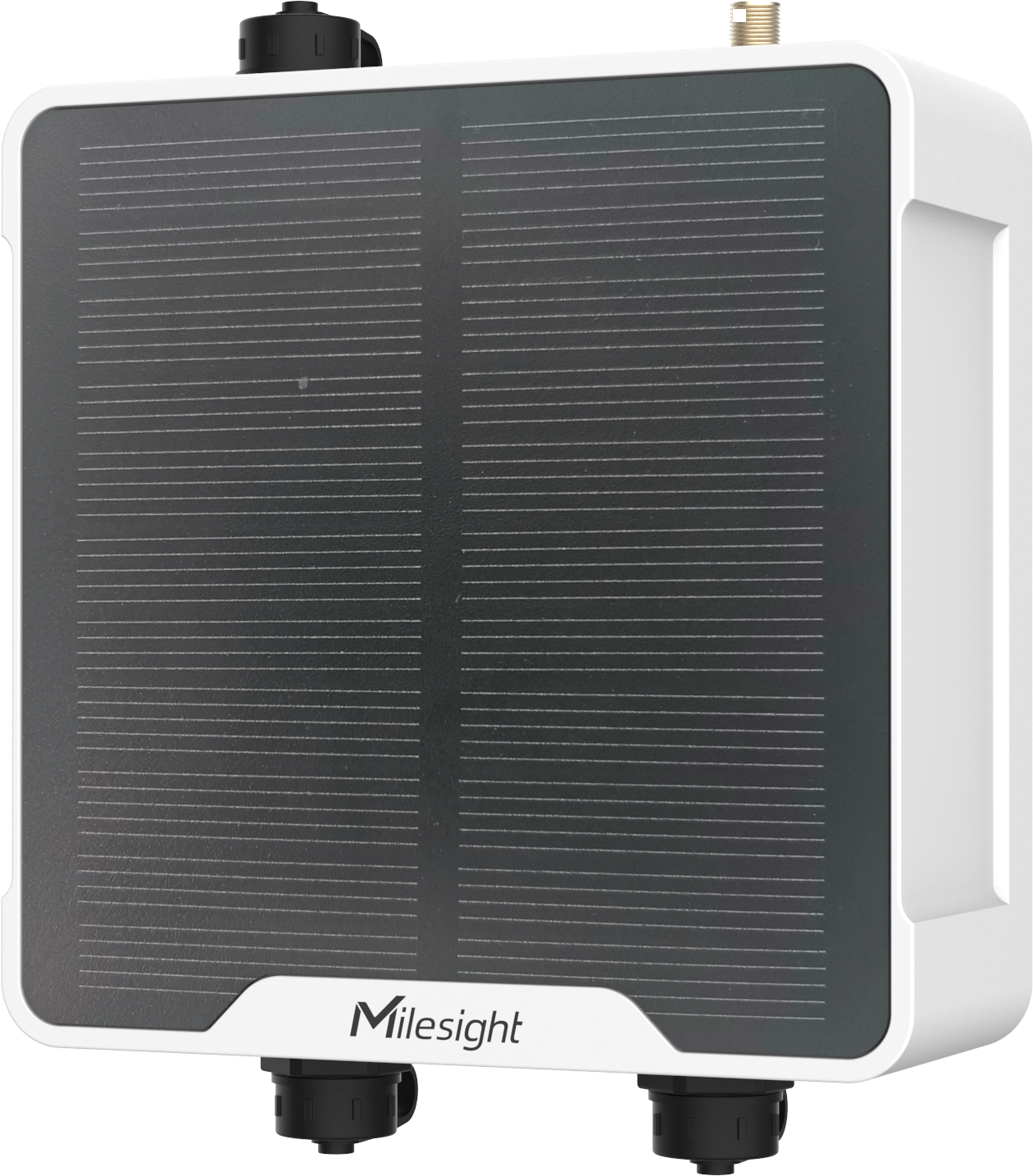

| Power Supply | 1.Solar Powered (6V, 1.7W) 2.2 × 2550 mAh Chargeable Batteries 3.5-24 VDC (EA Version Only) |
| Battery Life*(20 min interval + control valve 4 times per day, 25°C) | When battery level is full and does not charge: Class A: Around 3 years Class B: Around 350 days Class C: Around 25 days |
| Operating Temperature | -20°C~60°C |
| Ingress Protection | IP67 |
| Dimension | 116 × 116 × 45.5 mm (4.56 × 4.56 × 1.79 in) (Connectors Excluded) |

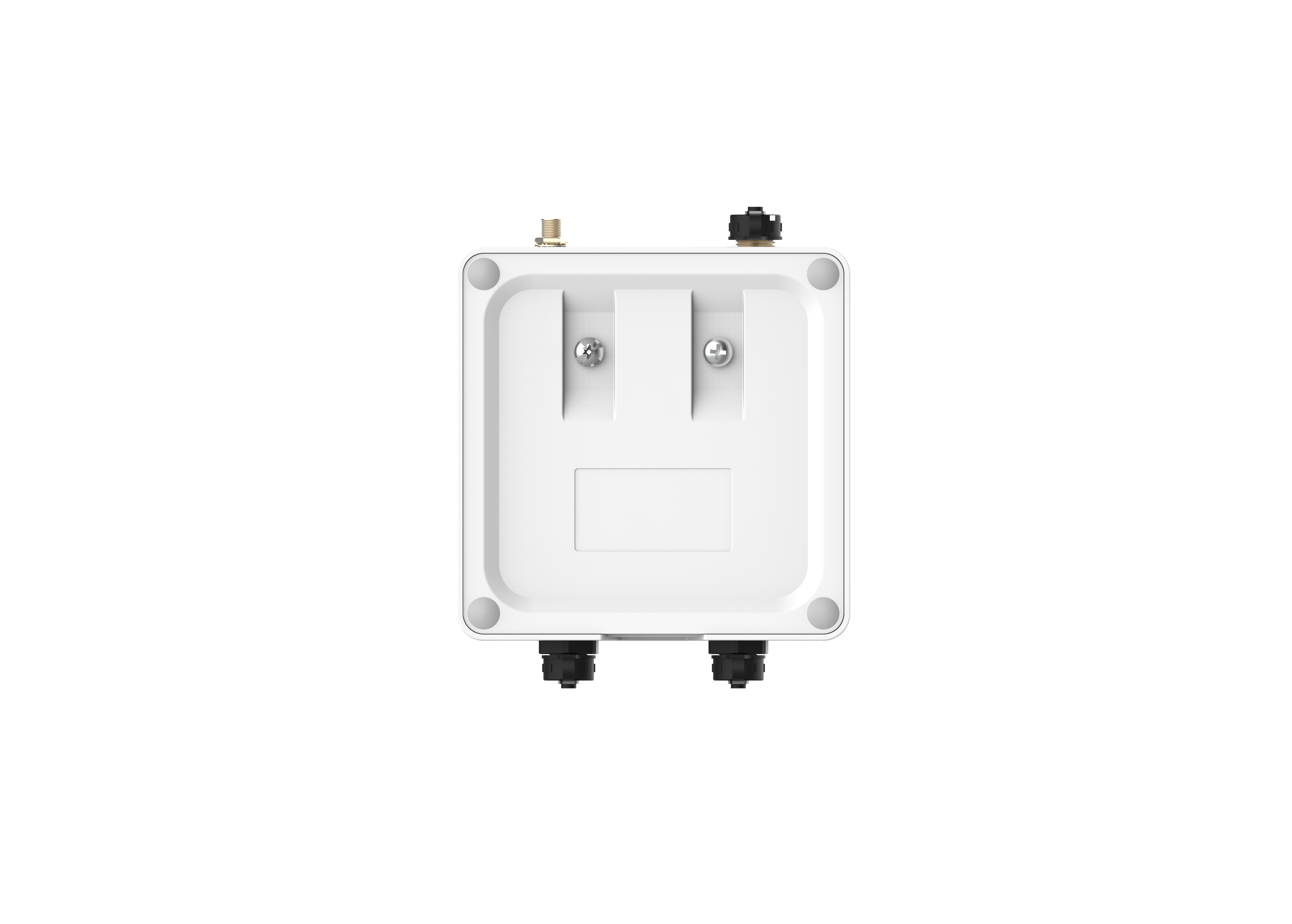

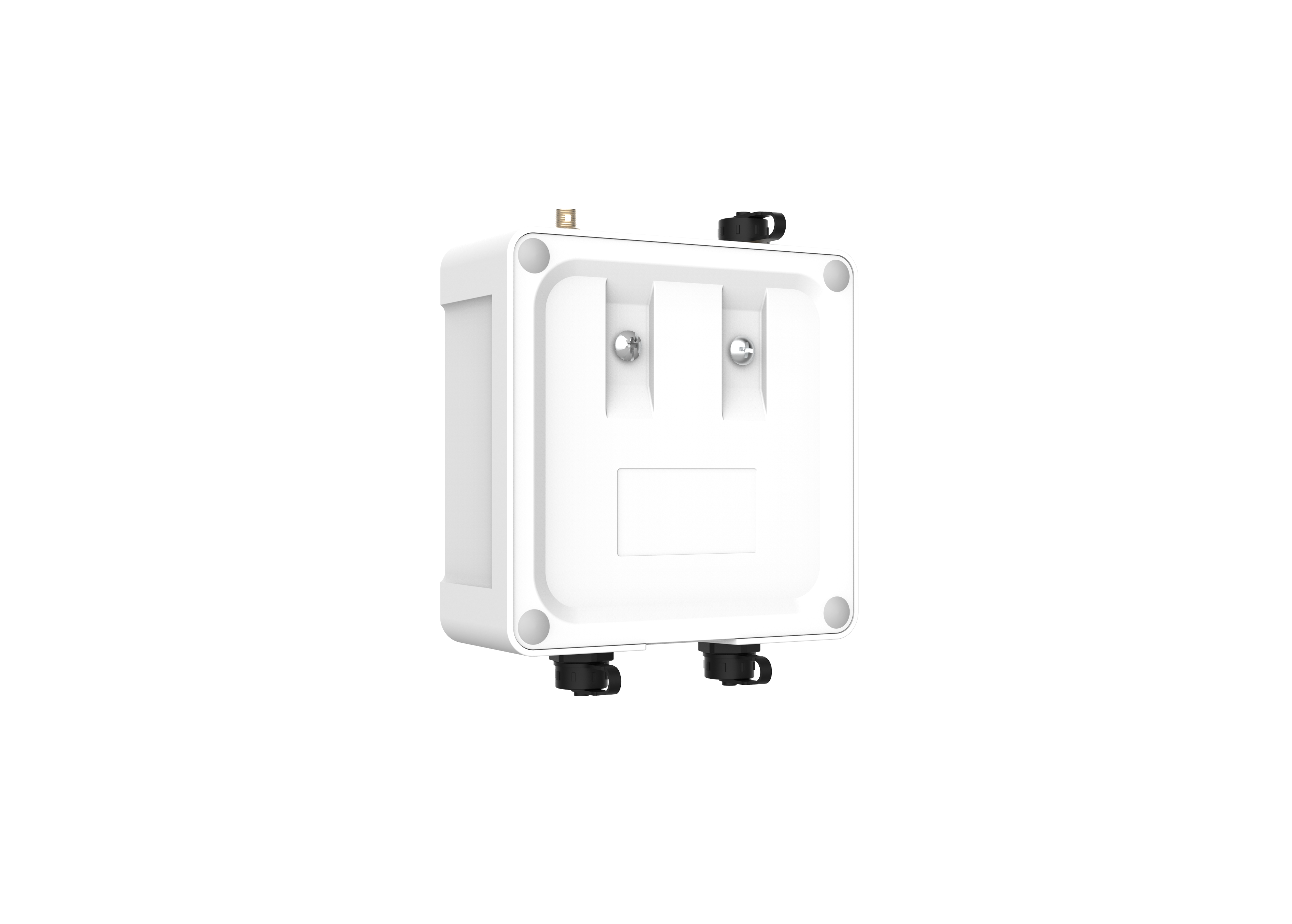

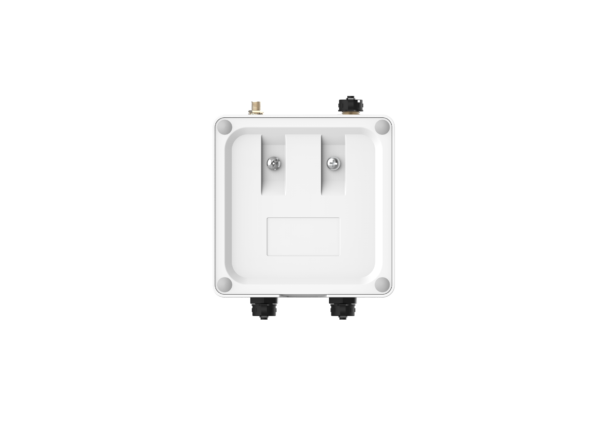

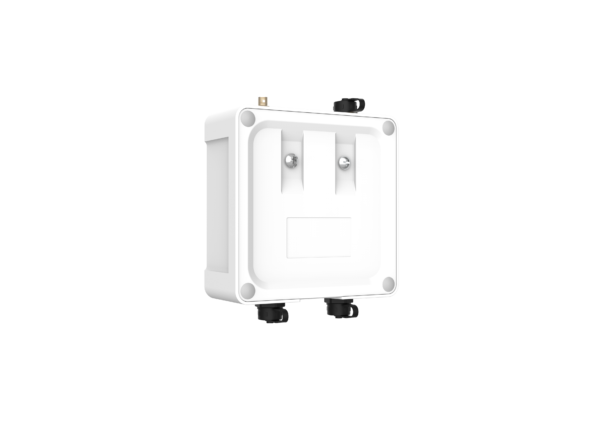

| Installation | Wall or Pole Mounting |
| Approvals | |
| Regulatory | CE, FCC |
| Environmental | RoHS |
